The titanium rod industry is a key industry with a wide range of applications in the aerospace, automotive, medical and chemical industries. Titanium rods are known for their high strength, corrosion resistance and light weight. Whether you are purchasing titanium rod for a new project or replacing an existing material, this Sourcing Guide will provide you with comprehensive guidance to help you make an informed decision when purchasing titanium rod.

1. What is Titanium Rod?

Titanium rods are rods made of pure titanium or titanium alloy material. Titanium rods are typically round or square in cross-section and can be customized in length and diameter or side length. They can be formed and machined by processes such as heat treatment, cold working and precision machining to meet specific requirements and application scenarios.

2. The characteristics of titanium rods

Titanium rods are one of the materials of choice in many fields because of their light weight, high strength and corrosion resistance. Other characteristics of titanium rods include:

Low density and high strength
Exceptional corrosion resistance
Excellent elevated temperature properties
Excellent Bearing to cryogenic property
Essentially non-magnetic
Nontoxic, non-allergenic and fully biocompatible
Good thermal properties
Low modulus of elasticity
Low thermal expansion coefficient
High melting point
Excellent aesthetic qualities
Environmentally sound

3. Types of Titanium Rods

There are different types of titanium rods available in the market, each with its unique properties and applications. In this section, we will explore the various grades of titanium rods, including grade 1, grade 2, grade 5, and grade 23, and their respective applications.

Grade 1

Grade 1 titanium rods are the purest form of titanium and have the lowest strength among all grades. They are ideal for applications that require high corrosion resistance, such as marine and chemical processing.

Grade 2

Grade 2 titanium rods are stronger than grade 1 and have excellent corrosion resistance properties. They are ideal for applications that require high strength and good ductility, such as aerospace, medical, and automotive industries.

Ti Grade 3

Ti Grade 3 is an unalloyed, high strength titanium product with excellent corrosion resistance and weldability. This grade of titanium is primarily used in airframe and aircraft engine parts.

Ti Grade 4

Ti Grade 4 is the highest strength pure unalloyed titanium product. This titanium grade is used almost exclusively for airframe and aircraft engine parts, marine, surgical implants and hydraulic tubing. It is characterised by good formability and corrosion resistance.

Grade 5

Grade 5 titanium rods, also known as Ti-6Al-4V, are the most widely used titanium rods due to their excellent strength, high-temperature resistance, and corrosion resistance. They are ideal for applications that require high strength and low weight, such as aerospace, medical, and sports equipment.

Grade 7

Grade 7 has physical and mechanical properties similar to Grade 2. It has excellent welding and fabrication properties and is extremely corrosion resistant, especially to acids, due to the addition of palladium.

Grade 23

Grade 23 titanium rods are also known as Ti-6Al-4V ELI and have similar properties to grade 5. However, they have lower oxygen and iron content, making them ideal for medical and dental implants.

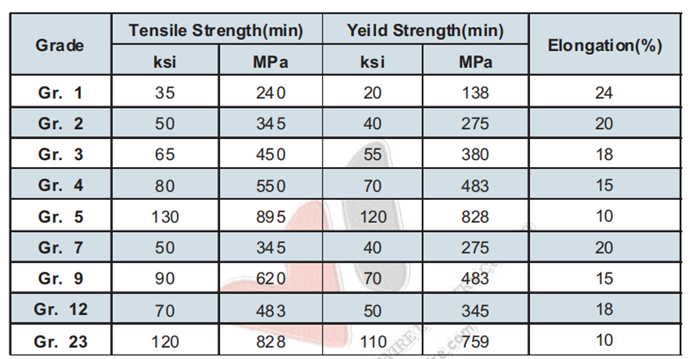

Mechanical properties of different grades of titanium rods

Chemical composition of different grades of titanium rods

4. Applications of Titanium Rods

Titanium bars have a wide range of applications in various industries due to their excellent performance.

Aerospace

Titanium rods are widely used in the aerospace industry due to their high strength-to-weight ratio and excellent corrosion resistance properties. They are used in various aircraft components, such as landing gear, engine components, and airframe structures.

Medical

Because of its biocompatibility and corrosion resistance, titanium rods are widely used in medical implants. They are used in applications such as orthopedic implants, dental implants and pacemakers.

Automotive

Titanium rods are used in a variety of automotive components such as exhaust systems, suspension components and engine parts. Titanium’s light weight and high strength can improve fuel efficiency and performance.

Marine

Titanium rods are used in the marine industry due to the excellent corrosion resistance of titanium in sea water. They are used in components such as propeller shafts, ship hulls and offshore drilling equipment.

Sports equipment

Titanium rods are used in a variety of sports equipment, including golf club heads, tennis rackets and bicycle frames. The high strength and light weight of titanium can improve performance.

5. Choosing the right titanium rod

When choosing a titanium rod, several factors must be considered to ensure that the right rod is selected for your application. Some key factors include

Application

Consider the specific application in which the titanium rod will be used, including any requirements for strength, corrosion resistance, and biocompatibility.

Environment

Consider the environment in which the rod will be used, including exposure to corrosive substances or extreme temperatures.

Size and shape

Consider the size and shape of the titanium bar required for your application, including diameter, length, and any threading or machining requirements.

Cost

Consider the cost of the titanium bar, including any additional processing requirements such as machining or surface preparation.
To learn how to tell the difference between good and bad titanium bars, you can also read our other article:How to distinguish titanium rods with 6 key points

6. Finding Reliable Suppliers

When searching for reliable suppliers of titanium rods, it is important to consider the following factors:

1. Research and Evaluate: Conduct thorough research and utilize online resources, industry directories, and trade platforms to identify potential suppliers. Evaluate their reputation, experience, and track record in the industry.

2. Supplier Credentials: Check for relevant certifications and accreditations that demonstrate the supplier’s commitment to quality and compliance with industry standards.

3. Client Portfolio: Review the supplier’s client portfolio and assess their experience in supplying titanium rods to industries similar to yours. This can provide insights into their expertise and capabilities.

4. Pricing and Payment Terms: Compare prices among different suppliers while considering the quality and specifications of the titanium rods. Negotiate favorable payment terms and discounts based on your purchasing volume.

5. Sample and Specifications: Request samples of the titanium rods to evaluate their quality, dimensions, and suitability for your specific application. Ensure that the supplier can meet your required specifications.

6. Supply Capacity and Lead Time: Assess the supplier’s production capacity and ability to meet your demand. Inquire about their lead times and responsiveness to ensure timely delivery of the titanium rods.

Customer Reviews and References: Seek customer reviews and references to gauge the supplier’s reputation, reliability, and customer service. Positive feedback and references can provide valuable insights into their performance.

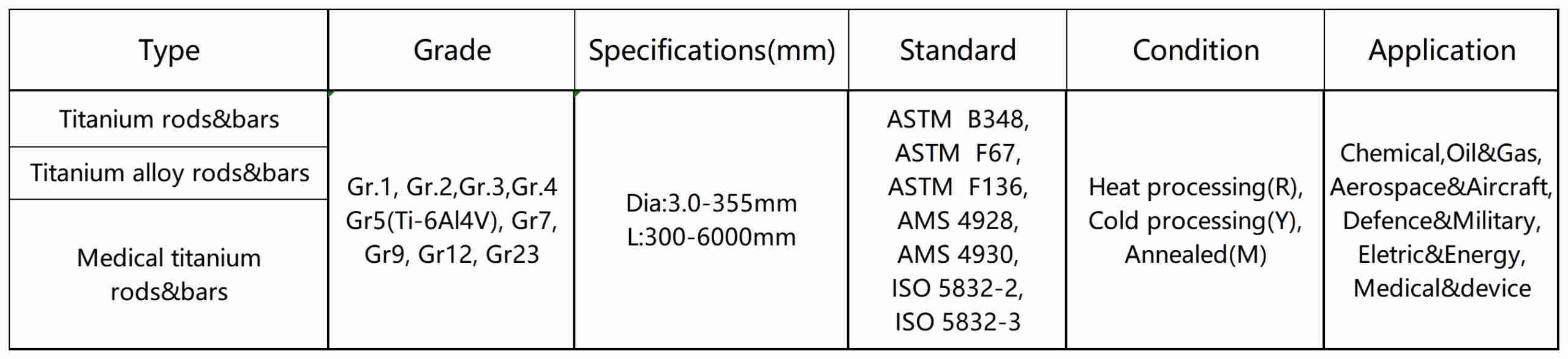

7. Our supply capacity of titanium rod

8. Summary

Purchasing titanium rods is a decision that requires careful consideration, and Polaris Titanium is your trusted partner. We have an excellent reputation and extensive experience in titanium products, providing our customers with the highest quality titanium rods.

Whether you need titanium materials for aerospace, medical devices or other industrial applications,Polaris Titanium offers a wide selection and guarantees reliable and timely delivery. Our titanium rod products undergo rigorous quality control and testing to ensure they meet the highest standards and satisfy our customers’ needs.

When you choose Polaris Titanium, you get superior quality, professional service and a lasting partnership. Contact Polaris Titanium today and let us be your first choice for successful titanium rod procurement.
